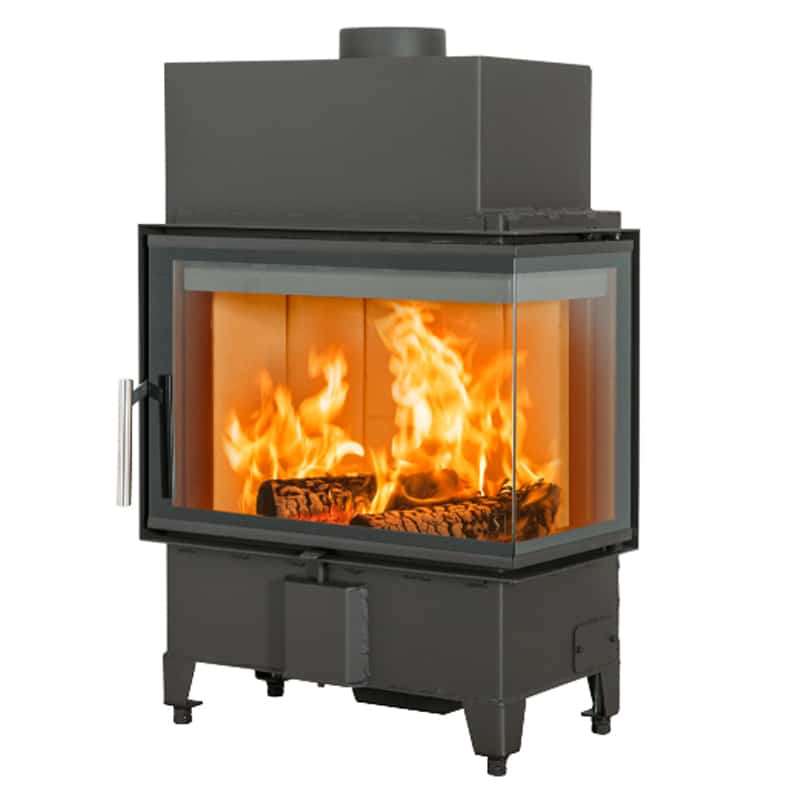

Scan 5103 FR Right Corner Sided Inset Wood Burning Fire

Scan 5103 FR Right Corner Sided Inset Wood Burning Fire

The SCAN 5103 FR Right Corner-Sided Inset Wood Burning Fire combines contemporary Scandinavian styling with efficient wood burning performance and an impressive two-sided view of the flames. Designed for built-in fireplace installations, this modern inset fire features glass across the front and right side, creating a striking focal point while allowing the fire to be enjoyed from different angles.

With a 6.8kW nominal heat output and 81% efficiency, the SCAN 5103 FR provides effective warmth for a variety of living spaces. Its wide firebox accommodates logs up to 450mm in length, delivering an expansive flame display and the convenience of using larger logs.

The clean black finish, minimalist frame and distinctive aluminium handle give the SCAN 5103 FR a refined appearance that complements contemporary interiors. The large glass panels provide an excellent view of the fire, while the clean-burning combustion system helps deliver efficient performance. The integrated airwash system helps keep the glass clearer during operation.

Designed with installation flexibility in mind, the SCAN 5103 FR offers top or rear flue connection options and can be connected to an external air supply. Optional accessories include a heat storage system to extend heat release after the fire has died down, decorative frames and a convection air grille kit, allowing the finished installation to be tailored to your home.

Key Features
6.8kW nominal heat output
81% efficiency
A+ energy efficiency rating
Contemporary Scandinavian design by SCAN
Two-sided glazing with front and right-side viewing
Ideal for corner fireplace installations
Accommodates logs up to 450mm
Integrated airwash system helps keep the glass clear
Clean-burning combustion technology
Stylish aluminium door handle
External air connection available
Top or rear flue connection
Optional heat storage system
Optional decorative frames and convection grille kit
Modern black finish
Designed for wood burning
Dimensions & Technical Information
Specification Details
Model SCAN 5103 FR
Appliance Type Right corner-sided inset wood burning fire
Nominal Heat Output 6.8kW
Partial Heat Output 4.7kW
Efficiency 81%
Energy Efficiency Class A+
Fuel Wood
Maximum Log Length 450mm
Height 1,033mm
Width 626mm
Depth 419mm
Weight Approx. 120kg
Flue Connection 150mm nominal diameter
Flue Outlet Top or rear
External Air Available
Glazing Front and right side
Finish Black

The SCAN 5103 FR Right Corner-Sided Inset Wood Burning Fire is an excellent choice for homeowners seeking a modern inset fireplace with an expansive two-sided flame view. Its efficient combustion, generous log capacity and flexible installation options combine with clean Scandinavian styling to create an attractive and practical centrepiece for contemporary living spaces.
