Schiedel 6" (150mm) Internal Diameter ICID Plus To KVent Adaptor

Schiedel 6″ (150mm) Internal Diameter ICID Plus To KVent Adaptor

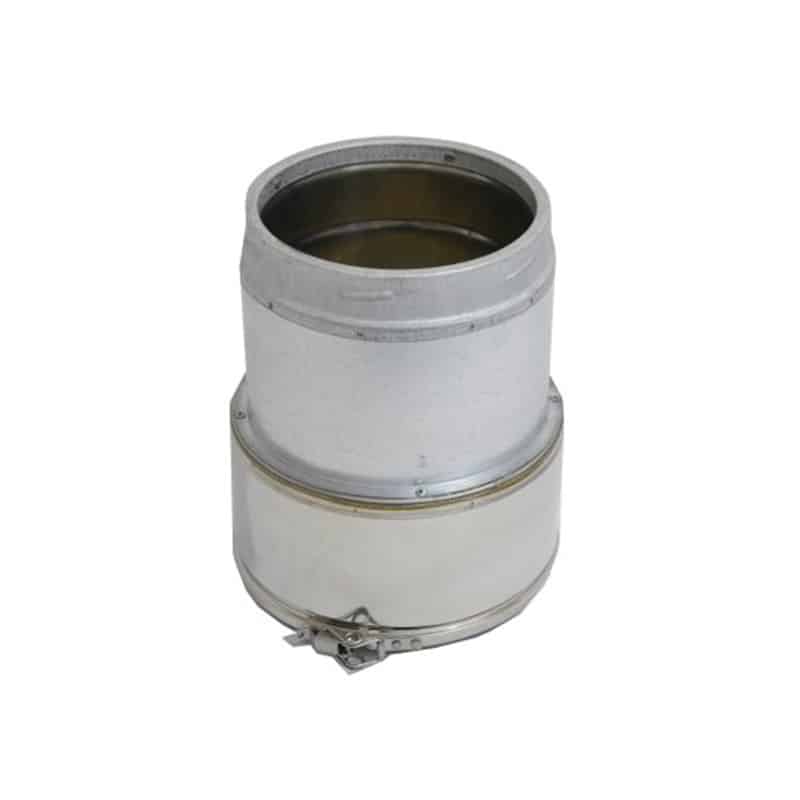

The ICID Plus 150mm KVent Adaptor is a termination component designed for use at the top of an ICID Plus twin wall flue system. It provides a secure and reliable connection to a KVent terminal, ensuring safe flue gas discharge. Manufactured in a stainless steel finish, it offers durability, corrosion resistance, and a clean, professional appearance.

This adaptor forms part of the ICID Plus twin wall flue system, which is engineered with advanced corrosion resistant design and construction. The system features a laser welded 316L stainless steel inner liner combined with a stainless steel outer casing. It is insulated with 25mm of high density rockwool to help maintain flue gas temperatures and improve overall system efficiency.

All ICID Plus components connect using a twist lock bayonet jointing system and are secured with a locking band to provide a strong and stable installation. A rubber joint seal is included, making the system suitable for condensing and biomass appliances.

The ICID Plus twin wall insulated chimney system is suitable for use with open and closed stoves operating at temperatures up to 450°C. The outer casing is load bearing, allowing the inner liner to expand independently and safely accommodate thermal expansion at every joint throughout the system.

About ICID Plus

ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.

Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.

Key Features of ICID Plus

• Internal diameters available in sizes 125mm and 150mm
• Secure twist lock bayonet jointing system with locking band
• High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
• 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
• Low external surface temperature for enhanced safety
• Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
• Lifetime guarantee for long term peace of mind

ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
