Stovax Studio 500 cassette Woodburning Fire

RRP: £2,545.00 Our Price: £1,908.75 YOU SAVE £636.25

This product is currently: In Stock & Ready For Dispatch

Product Options:

Secure Online Card Payments
Secure Online Payments
SKU 326-140 Category Tag

Stovax Studio 500 cassette Woodburning Fire

It doesn’t get much more minimalist than a built-in, integrated wood burning stove. The Studio 500 Cassette model fits flush to the wall with the sides and rear of the appliance enclosed for a clean aesthetic. Keep it as a hole-in the-wall fire or add presence with the Studio range’s array of stylish glass and steel frames.

Studio 500 built-in Cassette wood burning stoves are designed to burn with minimal emissions. Their high-efficiency heating and low emissions ensure they pass forthcoming Ecodesign air quality standards, and are exempt from DEFRA smoke control restrictions allowing them to be used in urban areas such as towns and cities. The Studio 500’s landscape proportions and firebox have been engineered to minimise the loss of heat energy when burning wood. Air jets inject preheated air above the flames, burning off hydrocarbons and gases to get more heat from each log and reduce smoke emissions. The powerful array of air jets also includes Airwash ports that keep the glass clear for stunning flame visuals.

A variety of optional kits let you get the most out of your Studio 500 wood burning stove which can be installed with an external air kit to take combustion air from the outside of the property, minimising internal draughts.

Using the warm air ducting kit, the built-in Studio 500 Cassette can push heated air into an additional room or other parts of the room it is sited in. These inset fires can also be upgraded with a fan-assisted convection kit to help circulate combustion air for increased efficiency.

Fire Size Nominal Heat
Output & Range
Max log lengths Frame dimensions mm
(wxhxd) Edge
Frame dimensions mm
(wxhxd) Edge ‘Cool Wall’
Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 550 x 421* 550 x 428* A

*Dimensions given are those overall visible upon installation. Once installed, Edge kits are flush with the finished wall surface. Edge ‘Cool Wall’ kits are recessed 28mm from the finished surface.

Ecodesign Plus
High efficiency up to 80%
Wood burning
Boost setting for lighting and re-fueling
Removable steel and TCL baffles
TCL firebox lining
Radiant heat and convected heat
External air facility
Optional warm air ducting system
Top flue connection (internal Ø) 153mm (6”)

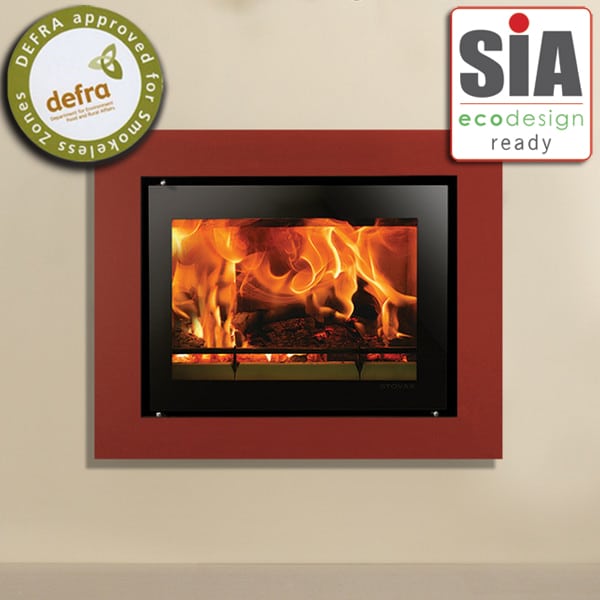

Suitable for Smoke Control Areas*



Stove Type







Edge, Edge 'Cool Wall', Edge +, Not Required, Profil – Metallic Black, Steel – Metallic Black, Steel XS – Metallic Black
